Fanxiang Sealing Strip is a brand of Foshan Fanxiang Technology Co., Ltd. Since its establishment in 2017, it has rapidly developed into a professional manufacturer of various rubber sealing strips with strong capital and superb technology. There are 160 employees, including 26 senior and middle engineers. The factory covers an area of 12,000 square meters, with a construction area of 10,000 square meters, and has 10 domestically advanced automated assembly lines.
Professional door and window sealing strips
Door and window sealing strips
Application
__

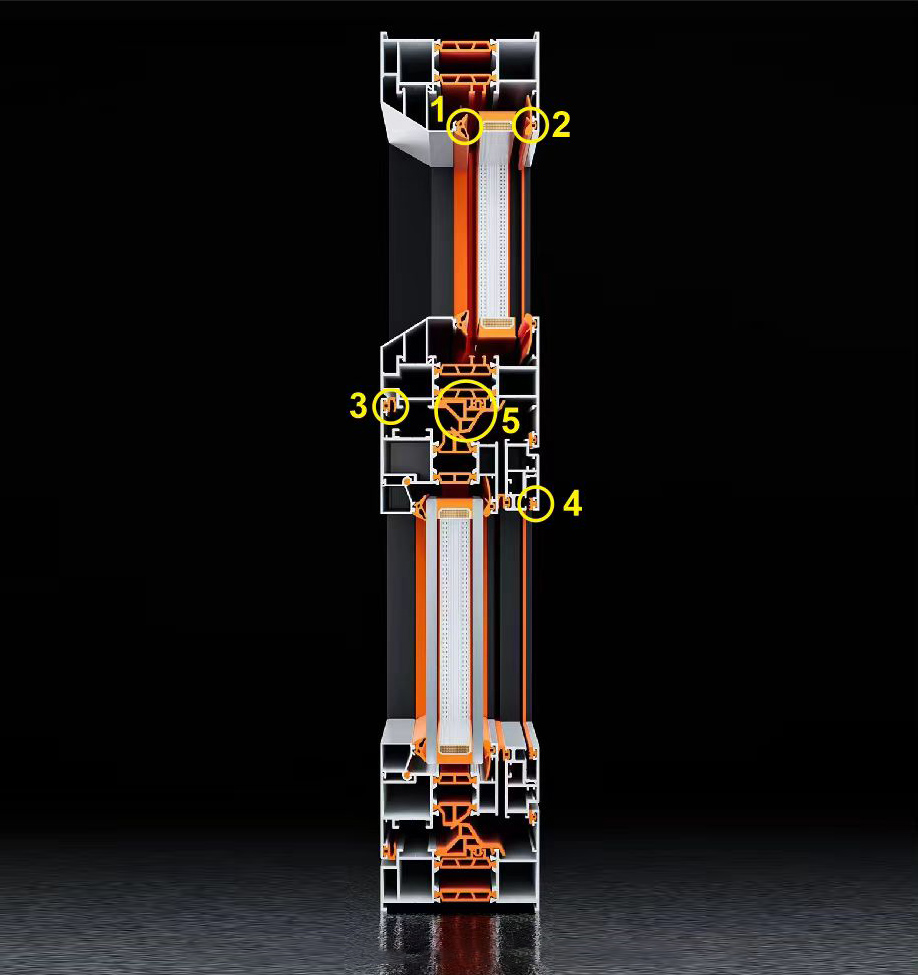

More commonly, the strips appear in 4 to 5 locations on the door and window structure:
2. Sealing strips on the outside of the glass. It is recommended to use wire strips or soft and hard co-extruded strips, water-expandable strips.
3. Sealing strips for opening positions. It is recommended to use soft and hard co-extruded strips.
4. Diamond mesh silent strips. It is recommended to use EPDM strips.
5. Three-way sealing strips (isobaric strips). The appearance of the middle strip forms a seal by overlapping with the bulge of the insulation strip (most common, and also with aluminum). This seal divides the chamber between the frame and the sash into an airtight chamber and a watertight chamber, making the sealing structure of the doors and windows more complete and reasonable, and the sealing effect of the doors and windows is of course better. It is recommended to use soft and hard co-extruded strips.
Advantages and characteristics
INFORMATIONS
___
According to different locations and needs, we will use different types of rubber strips in the production of doors and windows to achieve better sound insulation and waterproofing effects. Let us understand the functions and advantages of various rubber strips.
Integrated bending strip
ONE-PIECE BENDING
___
The whole window has only one interface, which greatly increases the service life of the rubber strip and makes the corners more beautiful. The foaming area of the integrated bending rubber strip can reach 95%, and its density can reach 0.4. While improving the strength and toughness, it also increases the compression ratio of the rubber strip and the insulation strip, thereby improving the sealing performance of the product.
Wire clamping strip
EPDM WITH LINE INSIDE
___
In order to pursue product stability and differentiation, high-end system doors and windows have better solved the problem of product shrinkage after stretching due to improper operation during the production and installation of the rubber strip, which leads to water seepage in the later stage of the product. The wire-clamping rubber strip process came into being. This product has all the characteristics of soft and hard co-extrusion, and has achieved zero shrinkage, zero leakage, and zero breakage.
WATER SWELLING ADHESIVE
___
The water-expandable composite strip is a new product made of EPDM strip and a unique new type of rubber. This rubber expands and deforms 2-3 times when it comes into contact with water, and fills all irregular surfaces, holes and gaps in the joints, while generating huge contact pressure to completely prevent leakage. It can also eliminate the elastic fatigue caused by excessive compression of general elastic materials, making the waterproof effect more reliable.

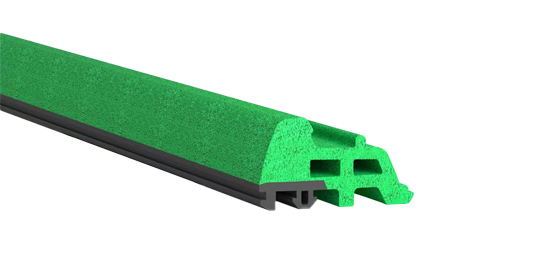

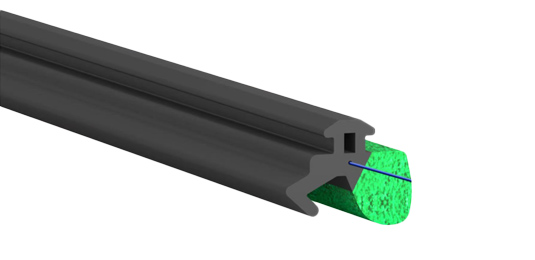

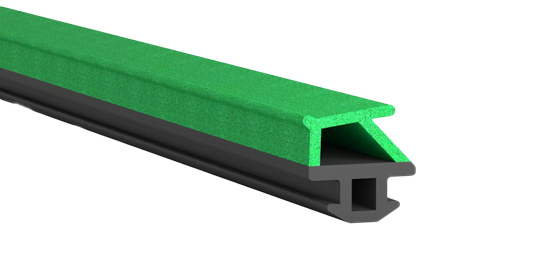

EPDM soft and hard co-extruded rubber strip (composite rubber strip)
EPDM MIX
___
EPDM soft and hard co-extruded rubber strips (composite rubber strips) use conventional technology for the inner part and foaming technology for the outer part. Adding foaming agent to the material formula of conventional technology makes the inner part of the rubber strip expand to form honeycomb-shaped pores. While retaining all the characteristics of EPDM rubber strips, the presence of sponge reduces the heat conduction of air and increases water tightness, so the thermal insulation of sponge rubber strips is better than that of conventional rubber strips. The thermal conductivity coefficient of sponge EPDM rubber strips is 0.05W/mK, and its elasticity, anti-aging and other properties are also more excellent.
EPDM rubber strip
EPDM
___
EPDM rubber strips have been widely used in automotive sealing and high-end door and window industries. They adopt high filling reinforcement and multi-element physical and chemical anti-aging system, have good ozone resistance, heat resistance, weather resistance, corrosion resistance, insulation, and low-temperature flexibility, and can be used in ozone-resistant, weather-resistant, and UV-resistant occasions.

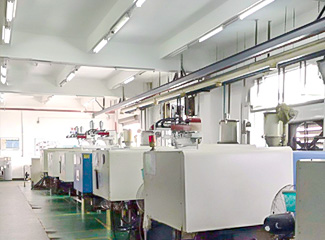

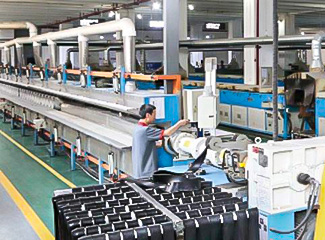

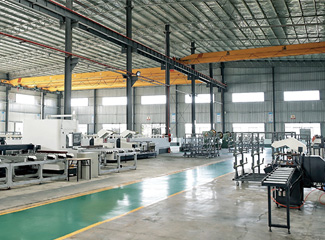

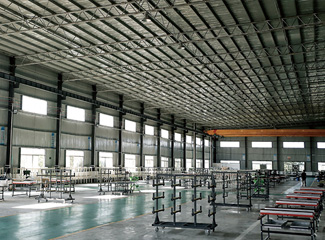

PRODUCTION WORKSHOP
___

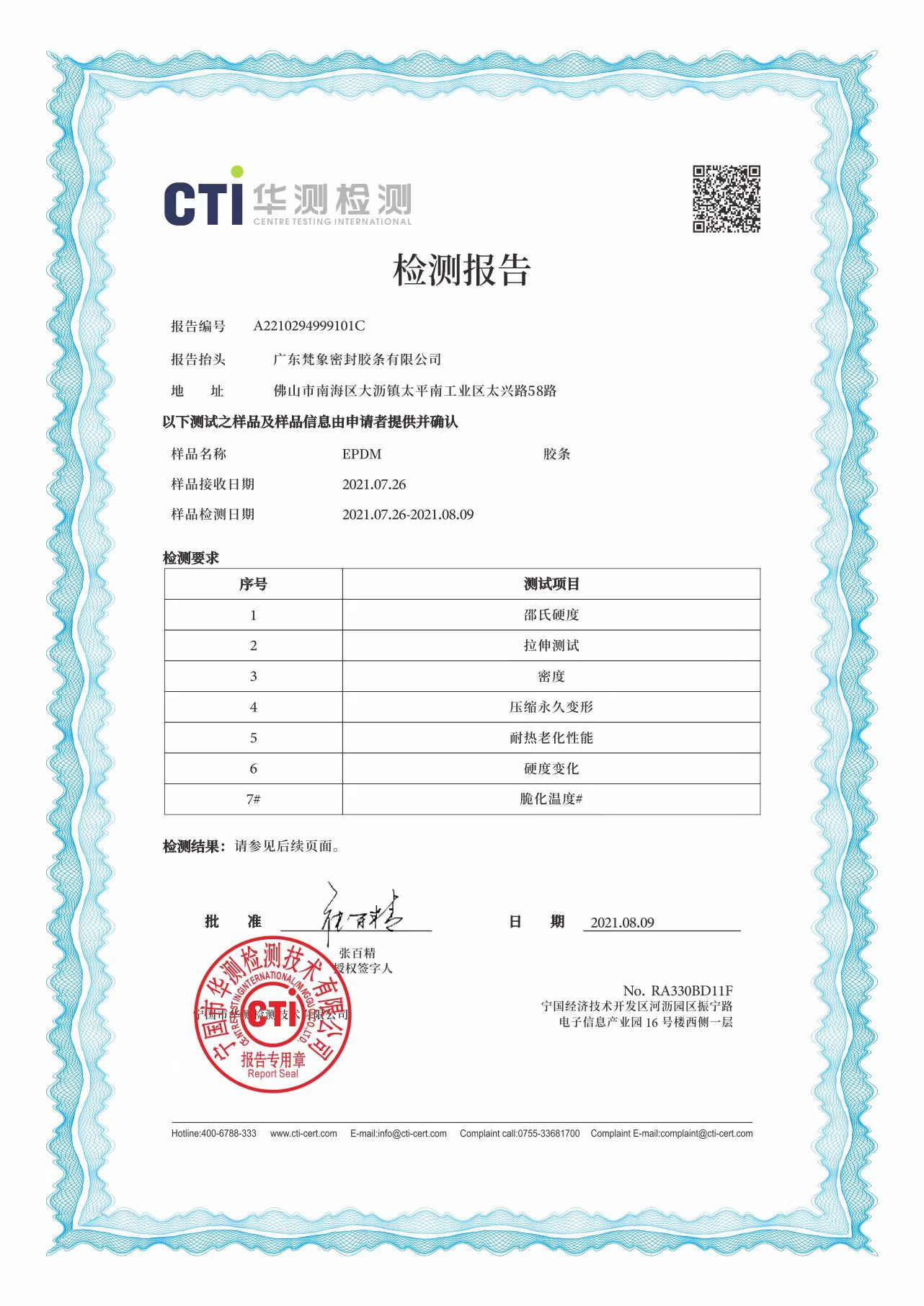

Certificate
___
BRAND ADVANTAGE
SEAMLESS WELDING
___
The isobaric rubber strip is bent in one piece without gaps and seamlessly welded, which provides better air tightness and water tightness.
___
It has a complete scientific research and production system from rubber sealing strip formula research, mold design and manufacturing, finished product testing of raw materials to finished sealing strip design and manufacturing.
___
Now it has passed ISO9001:2000, QS9000 and VDA6 certification. The company’s main products are door and window sealing strips, fireproof sealing strips, silicone sealing strips, EPDM sealing strips, foam sealing strips and other sealing products.
___
Direct sales from manufacturers eliminate the need for intermediary interests, optimize raw material suppliers, outsourcing manufacturers and procurement processes to reduce raw material costs, optimize sealing strip product structure and processes, ensure quality while saving costs.
The company is willing to meet the challenge with you with high-quality products, preferential prices and meticulous and thoughtful services, and work hand in hand to create a better tomorrow.
Quality – good quality is the strong support of certification
Now it has passed ISO9001:2000, QS9000 and VDA6 certification. The company’s main products include door and window sealing strips, fireproof sealing strips, silicone sealing strips, EPDM sealing strips, foam sealing strips and other sealing products.
____
Service – good products with good service after sales
We accept customized drawing services, develop exclusive products according to industry needs, ensure that products are connected without distinction, and have stable and guaranteed quality.
For engineering projects, we will assign a technical team to provide full-time tracking services, so that the products can be perfectly reflected in municipal and other projects, and truly guarantee the quality of the project
